Six installation errors that create the next failure.

In many bearing failures we investigate in industrial facilities, the problem begins during the last maintenance intervention.

Not necessarily through negligence, but through routine practices that are common across plants and can still introduce risk.

A bearing may be replaced correctly, but if the installation process introduces damage or leaves the machine in an unsuitable condition, the next failure may already be in the making.

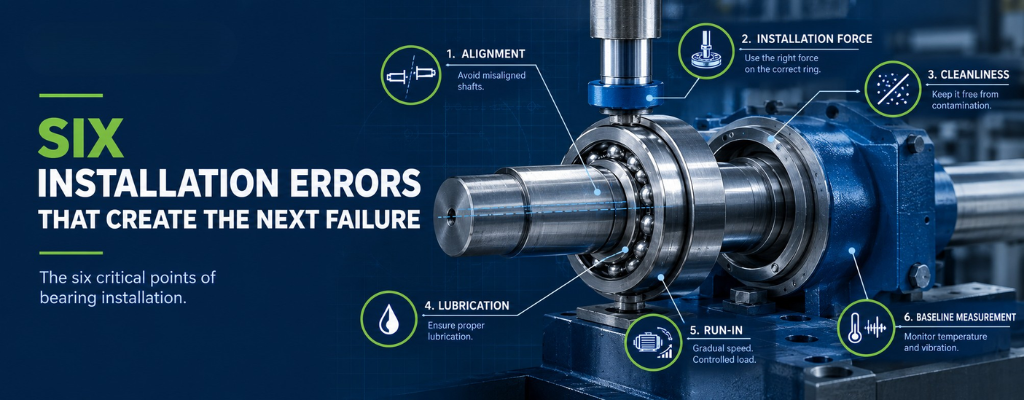

Six Installation Errors That Can Lead to Early Bearing Failure

1. Alignment Not Rechecked After Reassembly

Alignment may be checked before disassembly, but that does not mean it will remain unchanged after the bearing or other components are replaced.

Reassembly can alter the alignment of shafts and connected components. If alignment is not checked again, the machine may restart with additional mechanical stress.

What to do: Verify alignment after reassembly and before returning the machine to normal operation.

2. Incorrect Force During Bearing Installation

Bearings are precision components. Applying installation force incorrectly can damage their internal surfaces and rolling elements.

Hammering directly onto a bearing or transmitting mounting force through the wrong ring can introduce damage even before the machine starts running.

What to do: Use the correct mounting tools and manufacturer-recommended procedure. Apply force only through the appropriate bearing ring.

3. Housing Not Cleaned Before Installation

Dirt, old lubricant, metal particles or residue left on the housing and seating surfaces can affect how the bearing fits and operates.

Contamination can also enter the bearing during installation, contributing to premature wear.

What to do: Clean and inspect the housing, shaft and surrounding surfaces before fitting the replacement bearing. Keep the bearing protected from contamination throughout installation.

4. Lubricant Applied Without Checking the Specification

Lubrication is not simply about adding grease or oil. The lubricant type, quantity and application method all matter.

Too little lubricant, excessive lubrication or an incompatible lubricant can affect bearing performance.

What to do: Follow the bearing and application manufacturer's lubrication recommendations. Check compatibility before mixing or changing lubricants.

5. Returning to Full Load Without the Recommended Run-In

After replacement, some applications require a controlled start-up or run-in period before normal operating conditions are restored.

Returning immediately to full production without following the recommended start-up procedure may expose the newly installed component to avoidable operating stress.

What to do: Follow the manufacturer's start-up and run-in recommendations for the specific bearing and machine. Monitor the machine during the initial operating period.

6. No Baseline Measurements After Reinstallation

Once the machine restarts, its operating condition should be documented. Without a baseline, it becomes difficult to identify whether its behaviour changes over the following days or weeks.

Three useful measurements include:

• Temperature: Record bearing operating temperature.
• Vibration: Establish a vibration reading under documented operating conditions.
• Current: Record motor current draw where relevant to the application.

What to do: Record initial readings after restart and compare future readings under similar operating conditions.

Make These Checks Part of Every Maintenance Intervention

None of these errors guarantees bearing failure on its own. However, multiple installation and commissioning issues can combine to increase the risk of early failure.

A consistent post-maintenance checklist helps teams move beyond simply replacing components and focus on the condition in which the machine returns to service.

• Alignment verified after reassembly
• Correct bearing mounting method followed
• Shaft and housing cleaned and inspected
• Lubricant type and quantity verified
• Start-up and run-in procedure followed
• Temperature, vibration and relevant current readings recorded

The Next Failure May Begin Before the Machine Restarts

At Millstores Corporation, we believe reliable machine performance depends on more than selecting the right component. Correct installation, application understanding and ongoing monitoring all contribute to equipment reliability.

Because preventing the next failure starts with getting the maintenance intervention right.
